Steel Cementitious Bare Finished Raised Access Floor Built-in Trunking System High Profile
Resflor high profile steel cementitious trunking raised access floor system integraetd with multi-channel cable management system. Height-adjustable pedestals are self locking and range in height from 35mm to 150mm.
Affiliated Category: Steel Cementitious
Product Description
Panel Structure
① Top Steel Plate
Cold rolled steel plate (SPCC) epoxy powder coated with
excellent rust and corrosion resistance.
② Core
Precise controlled mixing of fireproof lightweight foaming
cement with advanced formula.
③ Bottom Steel Plate
64 embossments formed steel bottom plate (ST14) with
excellent rust and corrosion resistance.

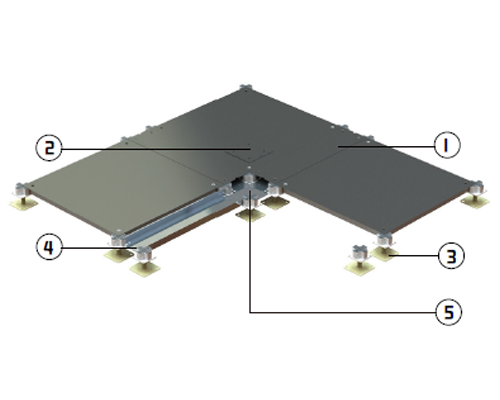

System Structure
①Channel Top Plate
High quality steel made, 2.0mm thick, epoxy powder coated finish, excellent
load-bearing capacity.
②Corner Top Plate
High quality steel made, 2.0mm thick, epoxy powder coated finish, excellent
load-bearing capacity.
③Pedestal
Assembly consisting of base plate, threaded rod with provisions for height adjustment, and top plate, made of aluminum.
④Channel Base Plate
High quality galvanized steel plate with excellent rust and corrosion resistance, design for cable and wires layout.
⑤Corner Base Plate
High quality galvanized steel plate with excellent rust and corrosion resistance, 4 corner holes to connect pedestals.
Pedestal*
①Top plate (head)
Fully aluminum-alloy made pedestal head, acoustic vibration gasket to deaden
sound, and maintain panel alignment and position.
②Threaded rod
M18, fully welded to base plate. Leveling mechanism for making and holding fine adjustments in height and or locking at a selected height, to prevent vibratory displacement.
③Base plate
95x95mm size, with 4 holes to drain excess of adhesive or allow mechanical anchoring.
System Components

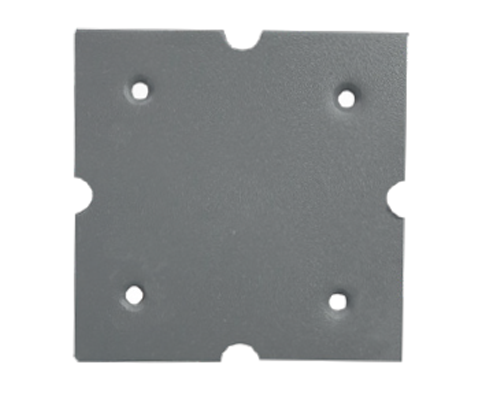

Corner Top Plate
High quality steel made, 2.0mm thick, epoxy powder coated finish, excellent
load-bearing capacity.

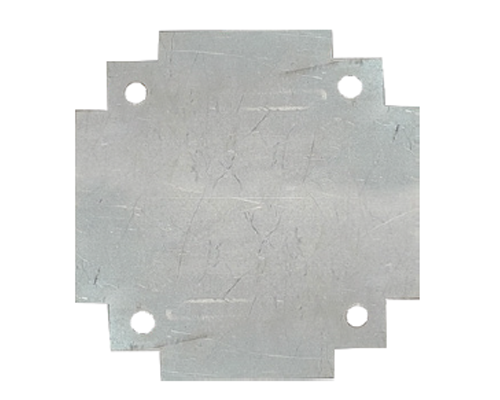

Corner Base Plate
High quality galvanized steel plate with excellent rust and corrosion resistance, 4 corner holes to connect pedestals.
Corner Base Plate
High quality galvanized steel plate with excellent rust and corrosion resistance, 4 corner holes to connect pedestals.

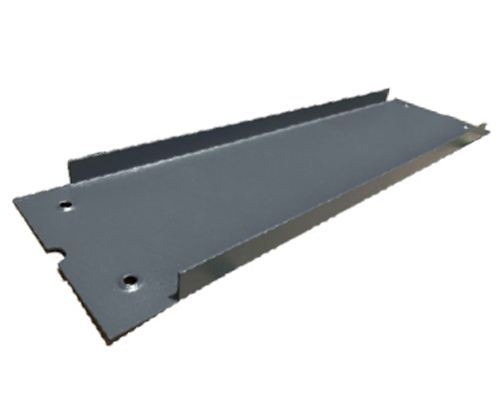

Channel Base Plate
High quality galvanized steel plate with excellent rust and corrosion resistance, design for cable and wires layout.
Two types:
Standard base；Deepen base
Performance
