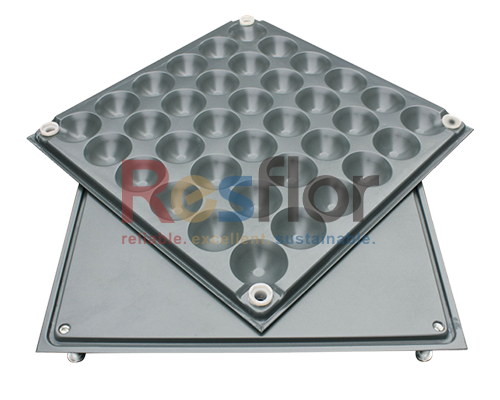

Steel Cementitious Bare Finished Raised Access Floor Built-in Trunking System Low Profile
Resflor low profile steel cementitious trunking raised access floor system, the installation configuration can be customized according to the density of wires and data. Force electricity and weak electricity can be partitioned for wiring.
Affiliated Category: Steel Cementitious
Product Description

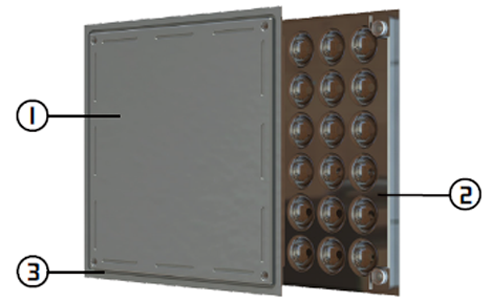

Panel Structure
① Top Steel Plate
Cold rolled steel plate (SPCC) epoxy powder coated with
excellent rust and corrosion resistance.
② Bottom Steel Plate
36 embossments formed steel bottom plate (ST14) with
excellent rust and corrosion resistance.
③ Grooved Channel
Precise controlled mixing of ireproof lightweight foaming
cement with advanced formula.

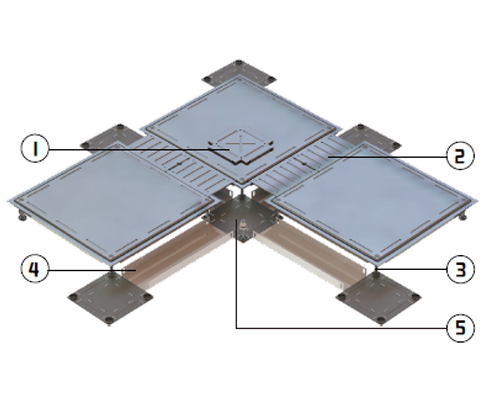

System Structure
①Corner Top Plate
High quality steel made, 2.0mm thick, epoxy powder coated finish, excellent
load-bearing capacity.
②Channel Top Plate
High quality steel made, 2.0mm thick, epoxy powder coated finish, excellent load-bearing capacity.
③Pedestal
Height-adjustable electrogalvanized steel pedestals are self-locking and range in height from 35mm to 150mm.
④Channel Base Plate
High quality galvanized steel plate with excellent rust and corrosion resistance, design for cable and wires layout.
⑤Corner Base Connector
High quality galvanized steel plate with excellent rust and corrosion resistance.

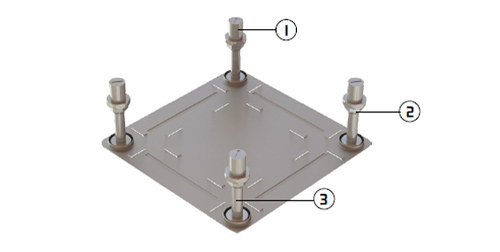

Pedestal
① Fixing Nut
Electrogalvanized steel, H=25mm, adjusting range +/-10mm.
② Locking Nut
Electrogalvanized steel, M12 nut.
③ Bolt Stud
Electrogalvanized steel, M12 bolt stud, height from 35mm to
150mm.

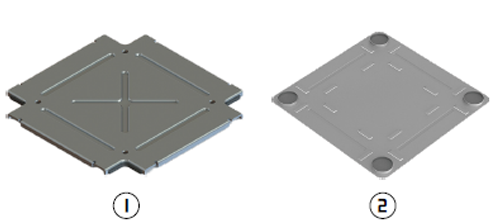

System Components
① Corner Top Plate
High quality steel made, 2.0mm thick, epoxy powder coated
finish, excellent load-bearing capacity.
② Corner Base Connector
High quality galvanized steel plate with excellent rust and
corrosion resistance.

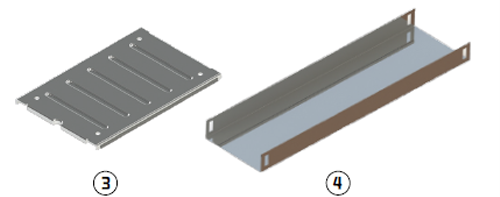

System Components
③ Channel Top Plate
High quality steel made, 2.0mm thick, epoxy powder coated
finish, excellent load-bearing capacity.
④ Channel Base Plate
High quality galvanized steel plate with excellent rust and
corrosion resistance, design for cable and wires layout.
Performance
