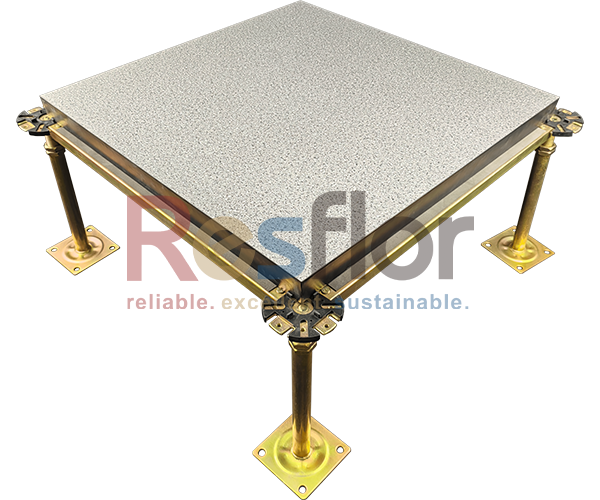

Calcium Sulphate Finished Raised Access Floor
Resflor calcium sulfate raised access floor panel make theenvironmently friendly plant’s fiber as the reinforcementmaterial, then solidify the calcium sulfate crystals, and afterthe pulse pressing process, finally fabricate ecologic…
Affiliated Category: Calcium Sulphate
Product Description

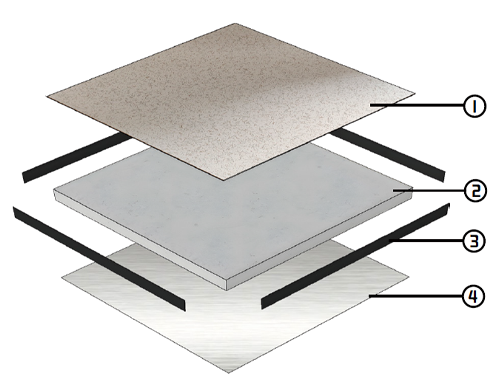

Panel Structure
① Covering
High Pressure Laminated (HPL), ESD Antistatic Vinyl, Ceramic, Carpet, Homogeneous Vinyl, Heterogeneous vinyl, Rubber, Linoleum, Nature Wood, Terrazzo, Granite, Marble and others under requirement.
② Core
Environment friendly plant’s fiber as the reinforcement material, then solidify the calcium sulfate crystals, and after the pulse pressing process, finally fabricate ecologic mono-layer mineral panel single-ply.
③ Edge Trim
Elastic edge trim around the panel edges, which is self-distinguishing, application of different kinds of covering on the panel surface must be ensured, protection against damage and humidity, edges inclined.
④ Bottom
High quality galvanized steel plate with excellent rust and corrosion resistance.

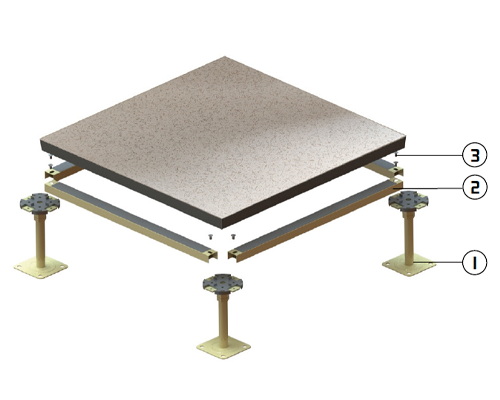

System Structure
① Standard pedestal
Assembly consisting of base plate, tube, threaded rod with provisions for height adjustment, and top plate (head), made of steel. Different heights to create cavity to accommodate the air conditioning, cable trays, electrical installations, water pipeline, etc. Pedestal can be glued to the subfloor or dowelled by expansion bolt on request.
② Standard stringer
Modular steel systems designed to bolt to pedestal top plate and form a grid pattern.
③ Screw
Galvanized steel screw to fasten the stringer to pedestal top plate, dimension M6*10mm.

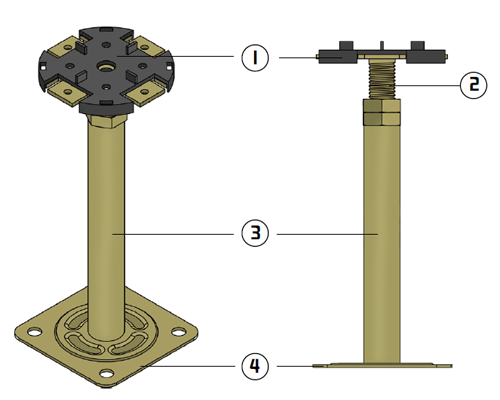

Pedestal*
① Top plate (head)
Dimension Φ95mm,thickness 3mm, acoustic vibration gasket to deaden sound,seal off the underfloor cavity and maintain stringer alignment and position.
② Threaded rod
M22, length 80mm, fully welded to top plate. Leveling mechanism for making and holding fine adjustments in height and for locking at a selected height, to prevent vibratory displacement.
③ Tube
Φ25mm, wall thickness 1.5mm, fully welded to base plate. The tube can be cut according to site requirements to obtain the required height.
④ Base plate
95mmx95mm, thickness 2mm. With 4 holes to drain excess of adhesive or allow mechanical anchoring.

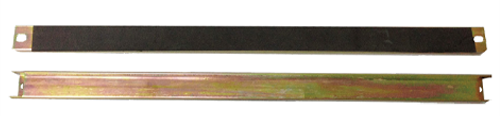

Stringer*
Dimension: 20mm(W)x30mm(H)x539mm(L), solid tube design, high strength, acoustic vibration gasket at contact surfaces between panel and stringer to deaden sound, seal off the underfloor cavity from above, and maintain panel alignment and position.
Performance
