Aluminum-alloy Solid Raised Access Floor
Resflor aluminum solid raised access floor panels surface could be epoxy-sprayed or nickel-chromium plated as requirement, factory applied covering with HPL or PVC. Light gloss,anti-corrosion,anti-wear and superior mechanic…
Affiliated Category: Clean Room
Product Description
Panel Structure

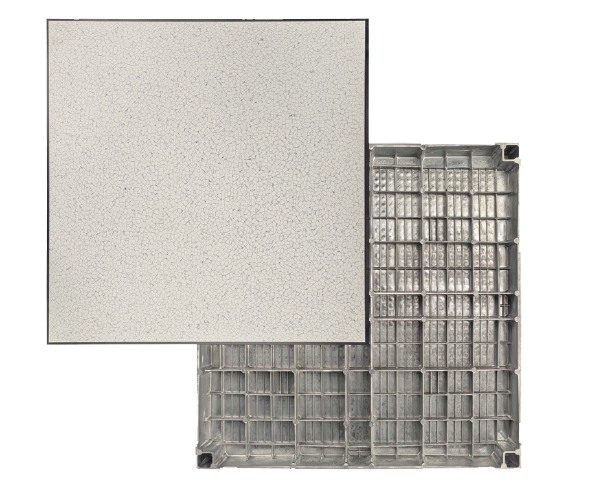

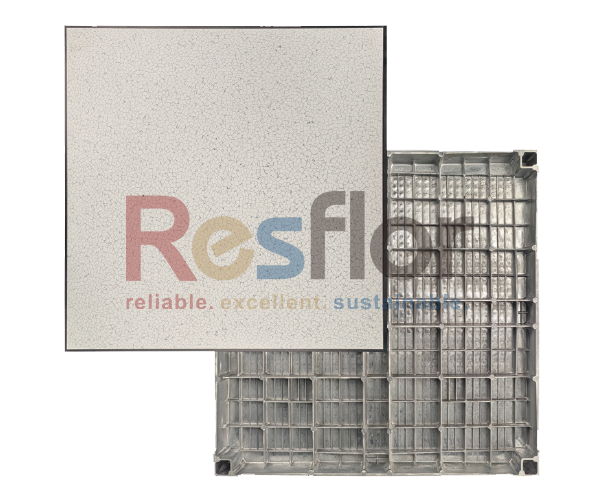

Whole Panel
High strength and pure die-cast aluminum as the base material, die-casted by a large-scale hydraulic press and precision machined, panel surface could be epoxy-sprayed or nickel-chromium plated as requirement, factory applied
covering with HPL or PVC. With excellent performance of light gloss, anti-corrosion, anti-wear and superior mechanic strength.

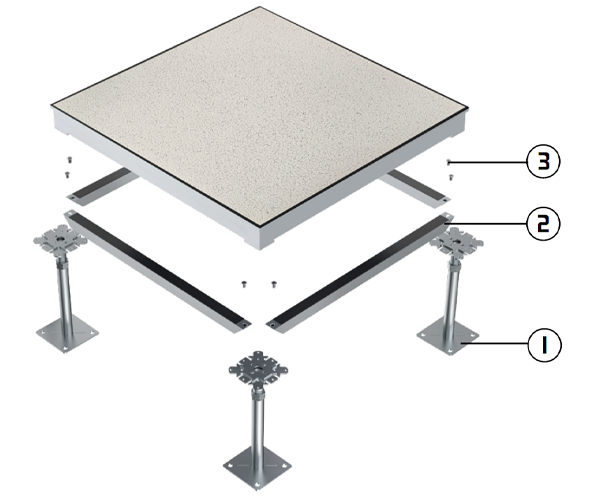

System Structure
① Standard pedestal
Assembly consisting of base plate, tube, threaded rod with provisions for height adjustment, and top plate (head), made of steel. Different heights to create cavity to accommodate the air conditioning, cable trays, electrical installations, water pipeline, etc.
Pedestal can be glued to the subfloor or dowelled by expansion bolt on request.
② Standard stringer
Modular steel systems designed to bolt to pedestal top plate and form a grid pattern.
③ Screw
Galvanized steel screw to fasten the stringer to pedestal top plate, dimension M6*10mm.
Pedestal*
① Top plate (head)
Dimension 90mmx90mm, thickness 3mm, acoustic vibration gasket to deaden
sound, seal off the underfloor cavity and maintain stringer alignment and position.
② Threaded rod
M20, length 10mm, fully welded to top plate. Leveling mechanism for making and holding fine adjustments in height and for locking at a selected height, to prevent vibratory displacement.
③ Tube
Φ24mm, wall thickness 2.0mm, fully welded to base plate. The tube can be cut
according to site requirements to obtain the required height.
④ Base plate
102mmx102mm, thickness 3mm. With 4 holes to drain excess of adhesive or allow mechanical anchoring.
Stringer*
Dimension: 25mm(W)x25mm(H)x539mm(L), solid tube
design, high strength, acoustic vibration gasket at contact
surfaces between panel and stringer to deaden sound, seal off
the underfloor cavity from above, and maintain panel alignment
and position.
Performance
Keywords: Aluminum-alloy Solid Raised Access Floor
