Raised Access Flooring Accessories
Resflor offers customers a wide range of raised access flooring accessories to ensure the proper functioning of the raised access flooring technology. All Resflor accessories are compatible with our raised access flooring systems as well as other raised access flooring brands in the market.

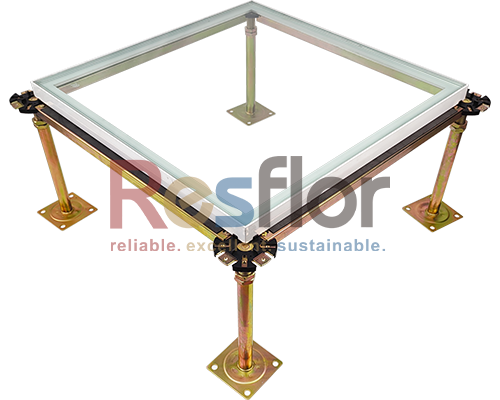

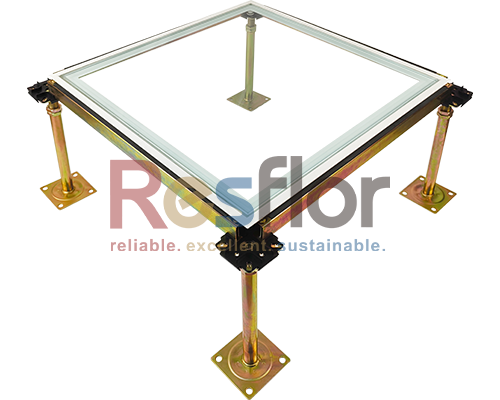

Transparent Glass Panel
The glass panel is made of specially crafted glass embedded in steel or aluminum frames with a size of 60o*60o mm. It is compatible with the whole range of Resflor raised floor system by using a uniquely designed strong stel or aluminum frame. Mostly used in computer room, equipment room, data center and so on.

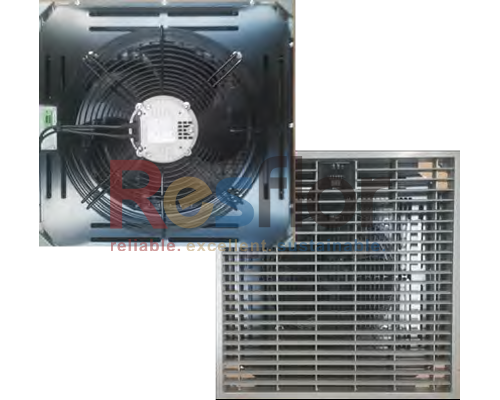

Air Booster
It is composed of ventilation grille, air supply fan and temperature control system. It is a special equipment for cooling dispatch in data center.
The small-scale axial-flow fan startup technology is adopted, energy-saving and stable, and an automatic temperature control system is built in. According to the temperature sensor, the exhaust temperature of the server is sensed, and the air supply volume is automatically controlled to ensure the cooling requirement of the server.
The ventilation rate of the ventilated grille floor reaches 75%, the single floor load reaches 600 kg, the ultra-thin design, the overall thickness is 100 mm, suitable for the lowest 200mm overhead floor room.
Air Booster
| Performance | |||||
| Model | Heat Load | Size | Max. Air Volume | Loading Capacity | Max. Power |
| ADU2600 | 12 KW | 600x600x200mm | 2120 CFM | 1200 Kg/m2 | 180 W |
| ADU4600 | 22 KW | 600x600x200mm | 2825 CFM | 1200 Kg/m2 | 320 W |
| All models can be equipped with Fire Linkage Template | |||||
Panel Lifter
A panel lifter is a tool designed to lift and move various types of panels, such as wood panels, glass sheets, and plastic panels, making it easier and more ergonomic for operators to handle heavy and bulky materials.
It comes in different types and designs, including vacuum panel lifters with customizable suction cups and ergonomic handles for precise control, as well as mechanical panel lifters with structures like toggle linkages or eccentrically mounted spindles.
Panel lifters improve work efficiency, reduce the risk of injury, and ensure the safe and damage-free handling of panels during installation or removal processes.
•125mm diameter vacuum suction cup.
•100mm height.
•Recommended lifting capacity is 15kgs.
• 110mm diameter vacuum suction cup.
• 250mm length.
• 140mm height.
• Recommended lifting capacity is 30kgs.
•120mm diameter vacuum suction cup.
• 90mm height.
• Recommended lifting capacity is 50kgs.

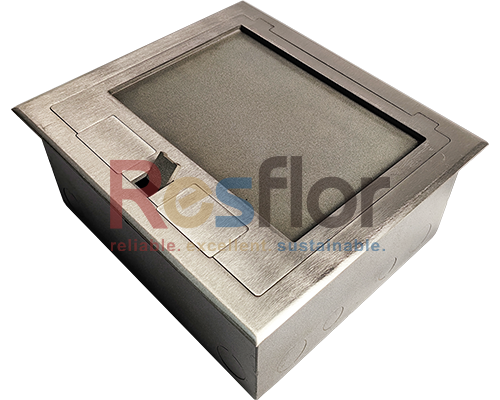

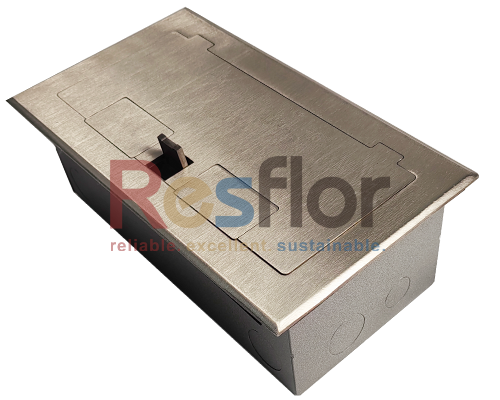

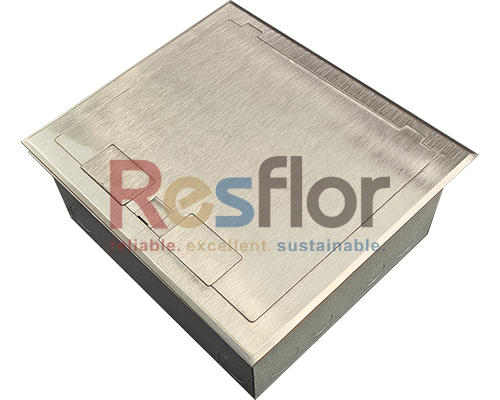

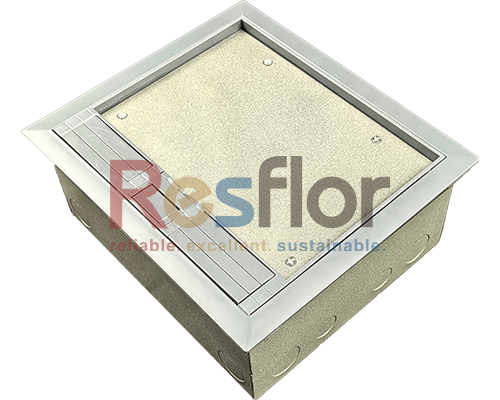

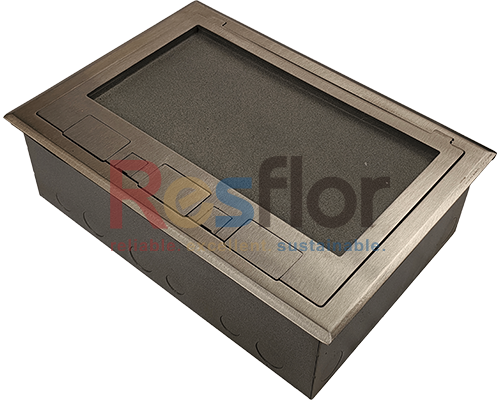

FLOOR BOXES
Resflor floor boxes are designed to work in concrete and raised access flooring applications. We provide various options of data, voice and audio – video outlet provisions, allowing complete distribution of telecommunication and data communication requirements along with power outlets from one point. Which is helpful for your cable and wire management needs through the openings in the cover. A single box can be specified for multiple floor types without having to order additional components or accessories.
Cover size: 340mm x 240mm
Body size: 320mm x 220mm
Cover size: 250mm x 140mm
Body size: 235mm x 112mm
Cover size: 250mm x 220mm
Body size: 235mm x 200mm
Cover size: 250mm x 220mm
Body size: 230mm x 210mm
Cover size: 250mm x 220mm
Body size: 220mm x 200mm

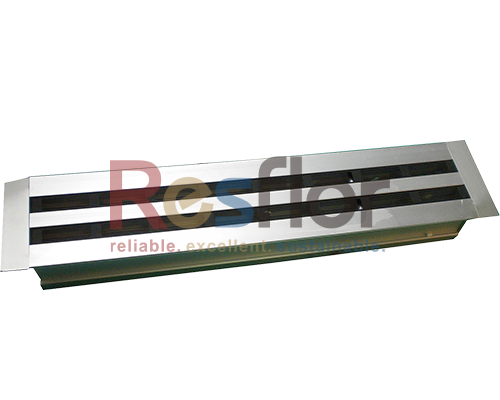

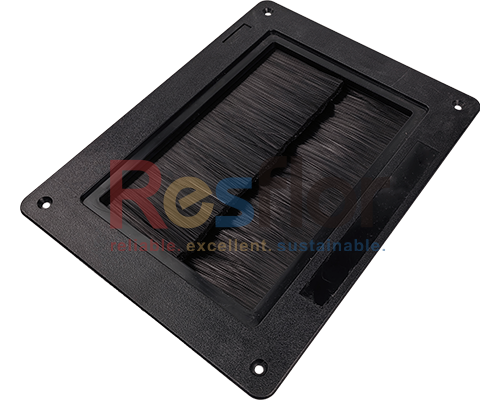

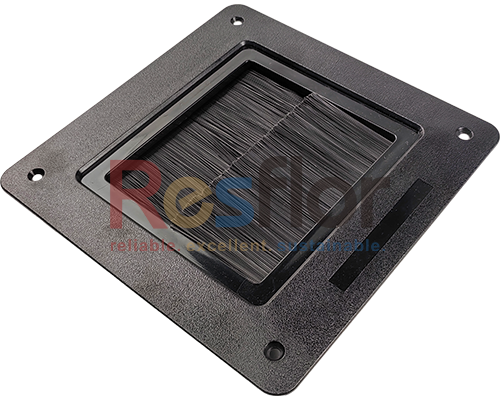

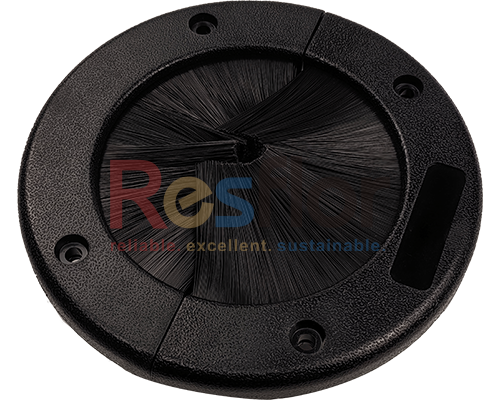

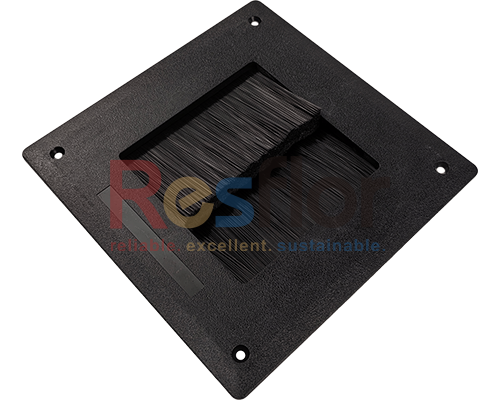

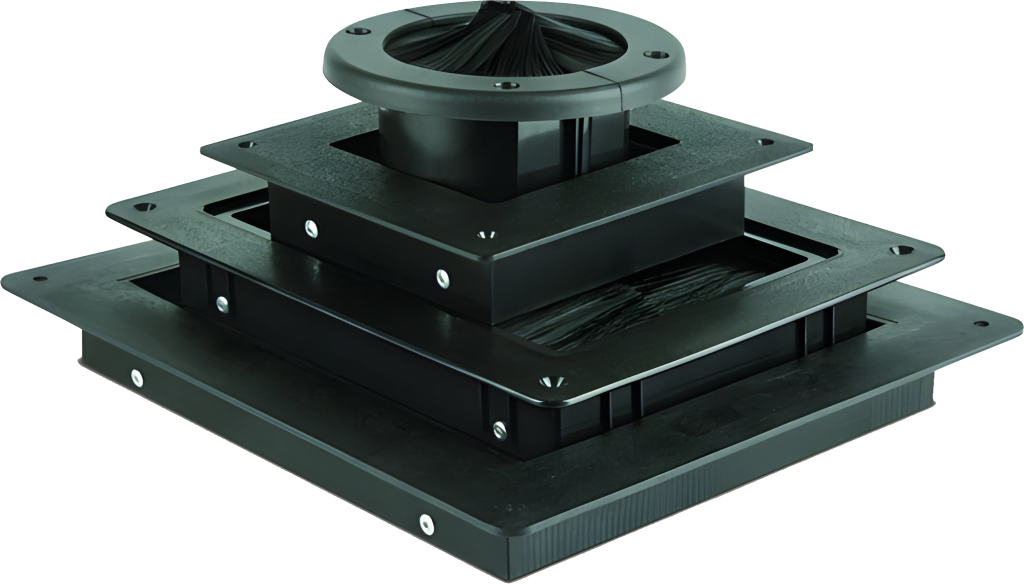

BRUSH GROMMETS
Brush grommets are mainly used for wire management and sealing. They create a seal around the space where cables pass through, preventing unwanted airflow leakage and helping to maintain temperature and keep the workspace tidy and safe.
Brush grommets come in different types and sizes, including single or double brush holders, and various materials and configurations to meet different installation and usage requirements.
Cover size: Φ145mm
Body size: Φ100mm
Open size: Φ105mm
Cover size: 175mm x 175mm
Body size: 135mm x 135mm
Open size:140mm x 140mm
Cover size: 190mm x 190mm
Body size: 140mm x 140mm
Open size:145mm x 145mm
Cover size: 285mm x 215mm
Body size: 235mm x 165mm
Open size: 240mm x 170mm

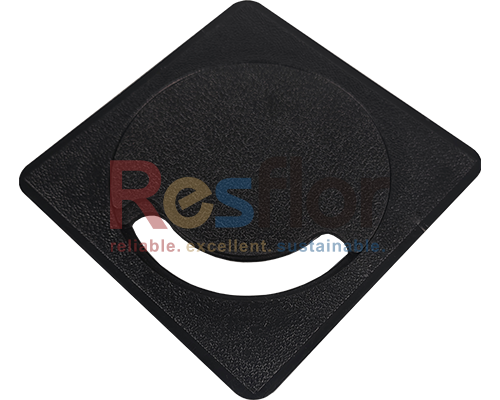

GROMMETS
Floor grommets are essential components for cable management in flooring systems. They provide a safe and organized way to run cables underneath the floor, protecting them from damage and reducing tripping hazards.
These grommets come in various sizes, colors, and materials, and are often made of durable ABS plastic. They usually feature a rotating cover that closes snugly around cables to prevent debris and objects from getting caught.
Floor grommets are widely used in different settings like classrooms, data closets, and call centers, improving the aesthetics of the space by hiding unsightly cables and wires, while also maintaining a clean and professional appearance.
Cover size: Φ138mm
Body size: Φ125mm
Cover size: 155mm x 260mm
Body size: 155mm x 115mm
Cover size: 137mm x 137mm
Body size: 120mm x 120mm
LINE LASER LEVEL
A line laser level is a tool that projects a level laser line, which is extremely useful for creating straight lines and ensuring accurate leveling in various construction and DIY tasks.
Line Laser Level

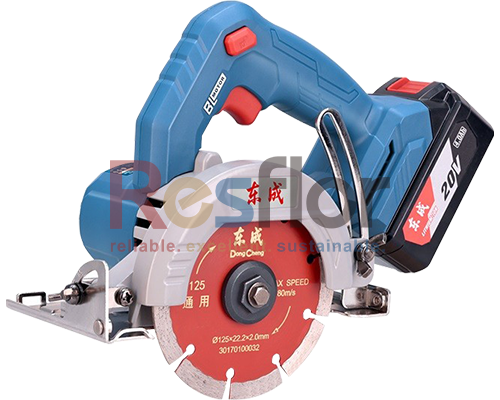

CUTTING SAW
The cutting saw is a hand-held tool used for cutting raised access floor panels like steel cementitious, calcium sulphate, woodcore/chipboard and aluminum-alloy types.
Manual Cutting Saw

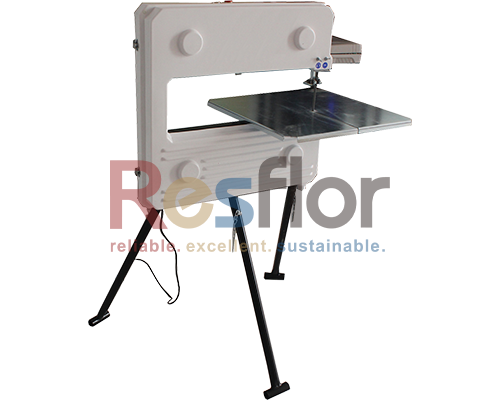

BANDSAW
Bandsaws are professionally used for wood and metal cutting and adopts a vertical structure. It offers advantages like uniform cutting action due to evenly distributed tooth load and the ability to cut irregular or curved shapes.
Bandsaw

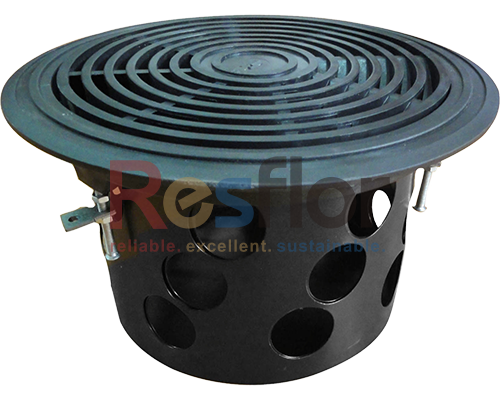

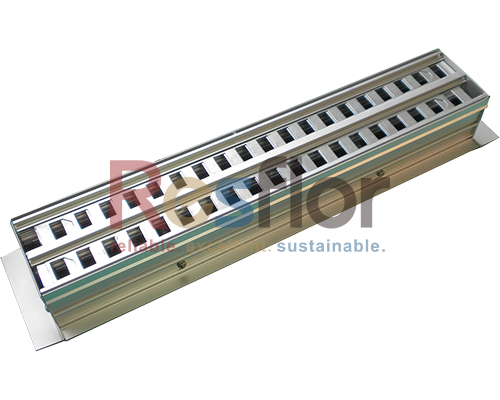

SMART AIR DIFFUSER
Smart air diffusers are used in elevated floor air supply systems. The product uses a sandwich floor air supply method and is mainly suitable for occasions where it is necessary to strengthen the existing air convection in the personnel stay area. Air convection or air rise may be caused by indoor personnel, machines or electrical equipment. Indoors where computers and other electronic equipment are used, more and more air is supplied from the floor upwards. This airflow form can quickly eliminate local heat loads in a targeted manner.
Smart Air Diffuser
VENTILATION AIR GRILLE
A ventilation air grille is a type of covering or grating, made of metal , that is installed in floors to allow the flow of air in and out of a space, facilitating proper ventilation. It comes in various shapes, sizes, and designs, such as square, rectangular, or circular, and can have adjustable blades or louvers to control the direction and volume of the air passing through.
Ventilation Air Grille Top
Ventilation Air Grille Bottom
SKIRTING & CONNECTION STRIP & COVE FORMER
Resflor provide all kinds of skirting, connection strip and cove former. Material: SPC, WPC, PVC, wooden and aluminum-alloy.

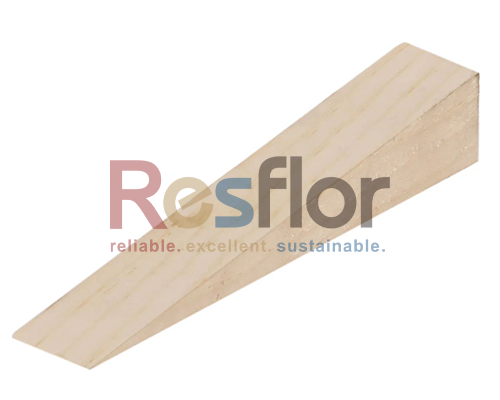

WOODEN WEDGE (SHIMMING KIT)
Wooden wedge is made of wood and has a tapered shape that allows it to be easily inserted into the gap between concrete slab and raised access floor pedestal base plate to level pedestal with wedges.

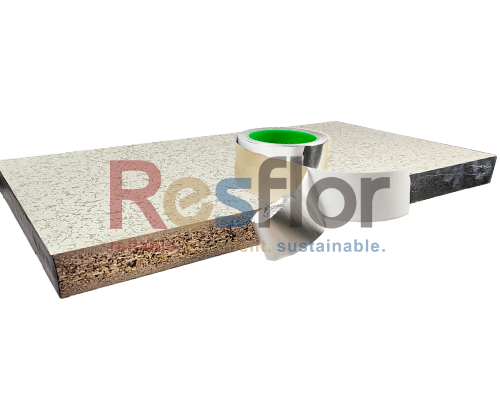

ALUMINUM FOIL TAPE
Resflor panel edge sealing aluminum foil is a specialized material used to cover and protect the edges of flooring. It is made of aluminum foil with an adhesive backing, providing a durable and moisture-resistant seal.
This type of aluminum foil is designed to enhance the appearance of the floor by creating a smooth and finished edge. It also helps to prevent damage from moisture, dirt, and wear, prolonging the lifespan of the flooring.

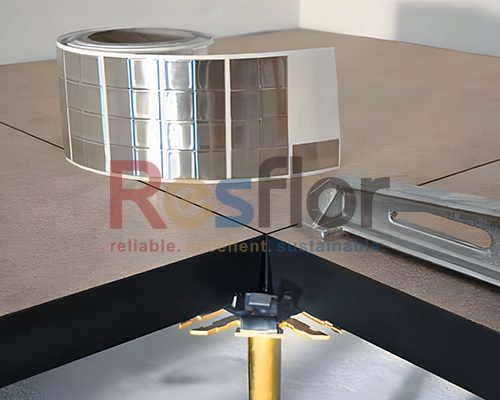

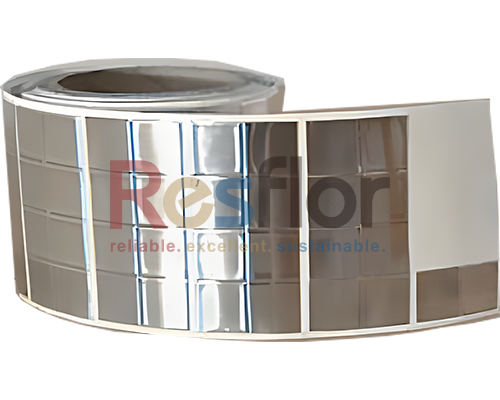

SELF-ADHESIVE ALUMINUM PAD
Resflor self-adhesive aluminum pad is a specialized material used under the rubberized sound deadening gasket cap for pedestal top plate to level and adjust raised access floor panel tolerances. It is made of aluminum with an adhesive backing.

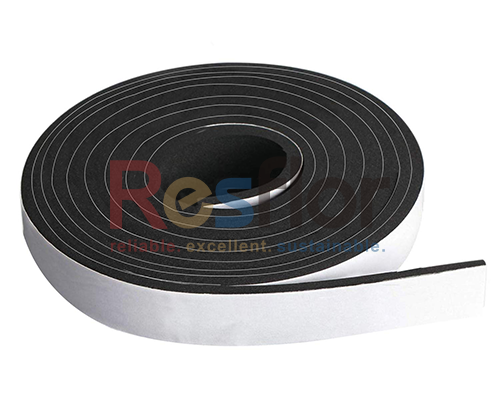

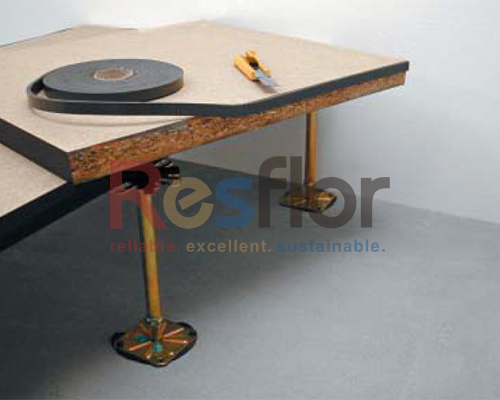

FOAM STRIP
Resflor foam tape is a special type of foam tape with EVA foam as the base material, it’s used to affix the raised access floor panel’s edges. With the advantages of water resistance, anti-vibration, thermal insulation, sound insulation, high viscosity, and easy peeling.
